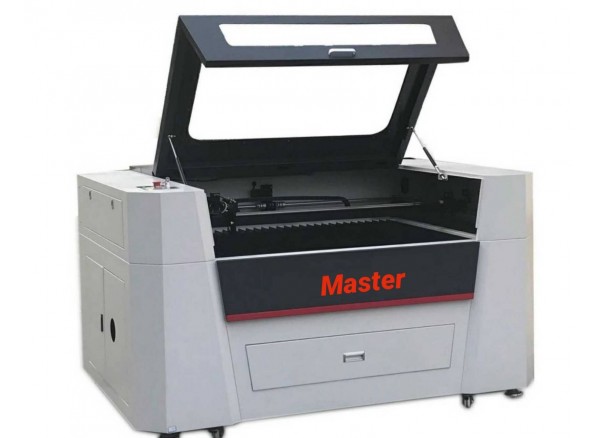

LASER CUTTER / ENGRAVER
Features and Benefits

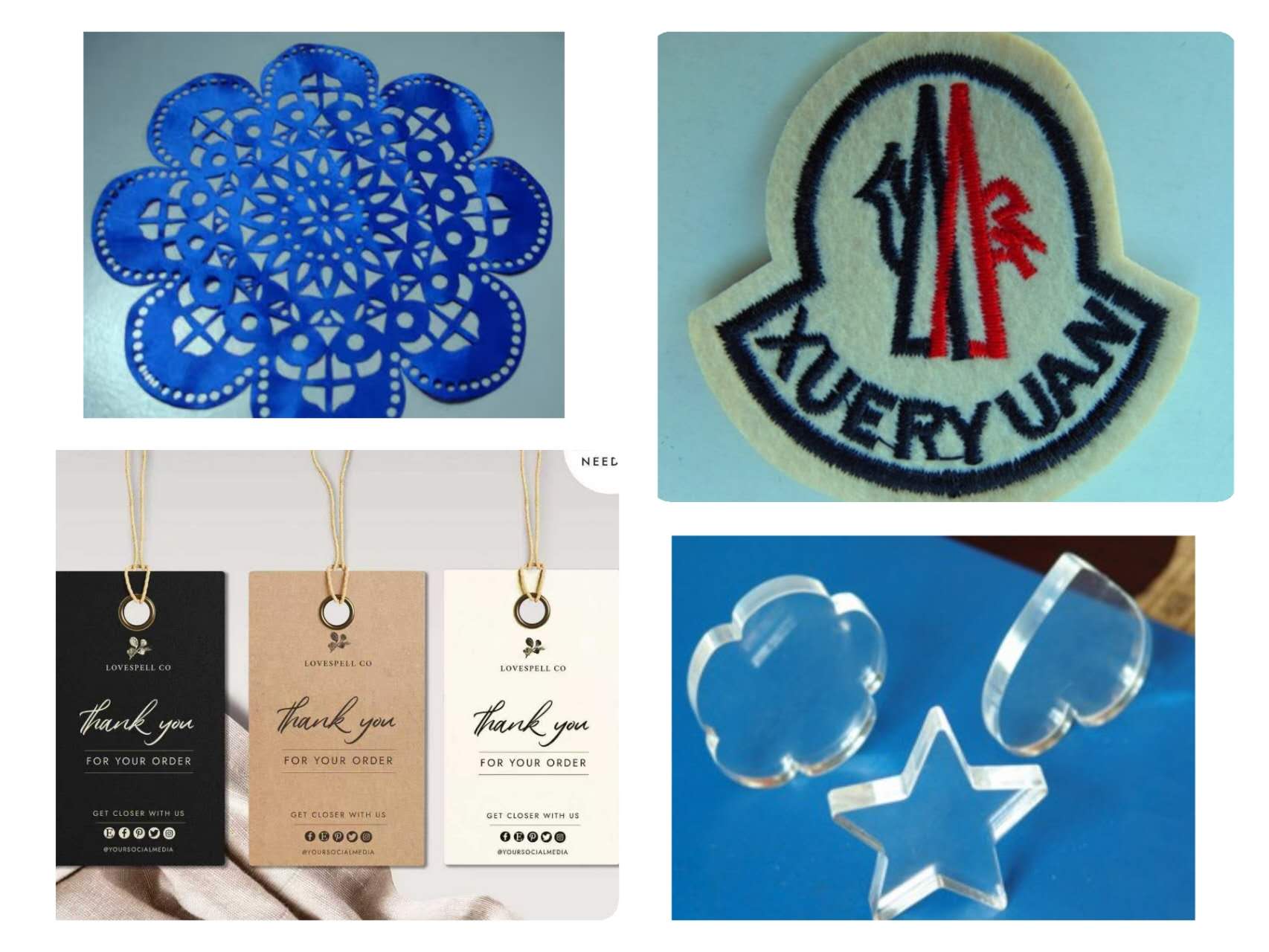

- The equipment is used for Cutting, Engraving , the content can be patterns, letters and numbers. Application materials are virable such as, Paper stocks, leather , wood, Acrylic, plastics, signage, stickers,fabrics...etc.
- The work table can lift up or down that may let you handle big size stock up to 230mm height.
- Contactless cutting/ engraving does not touch materials that makes processing more precise.
- Special software allows optimal composing with one click. You can work offline or connect with USB.
- If there is power failure, with the ‘Power off protection” function, you are able to restart and continue the project without having to start from the beginning
Specifications
|
Model |
LC1490 / LC 960 |
|
Working Area Max. |
1,400mmx900mm 55.1”x 35.43” / 900mmx600mm 35.43”x 23.62” |
|
Work table moves vertically |
Max. 250mm 9.84" |
|
Laser Power CO2 |
One 100w , Option 80w/ 120w/150w / more laser heads |
|
Processing Speed |
0- 25,000mm/min 0-82ft /min Depending on Material |
|
Repeat Accuracy |
+/-0.02mm |
|
Min. line Width |
0.2mm |
|
Control System , Software |
Ruida controller with Color LCD display, DSP control panel |
|
Support Graphic File |
PLT,DXF,CDR,BMP,DST, GPEG |
|
Connection |
USB , Ethernet cable, Can work offline |
|
Power Supply |
AC220V+/-5% , 10A , <1,500w |
|
Mahine Dimensions |
Machine 2,080x1,460x1,120mm / 1,430x1,060x1,120 mm Crate 2,220x1,610x1,320mm / 1,560x1,210x1,320mm |
|
Machine Weight |
Net : 450kg / 380kg Gross: 600kg / 520kg |
|
We do Customersized Laser Cutter for your ! |
Options or Upgrades:
CCD Camera system (For high precise cutting of printed stock by tracking marks)
Up to 4 laser heads system and more laser power to choose
Main Configurations:
One Laser head 100w ( One year warranty for laser )
One focusing lens
One Reflection mirror
Software allows optimal composing just by one click
Exhaust Fan ( To discharge smoke )
Air Pump ( Make laser head cool and clean)
Industrial Water Chiller ( Keep laser tube cool)
Honeycomb work table can move up and down in 250mm distance
Stepper motors and Belt Leadshine
Color LCD Display, Control panel, Software
