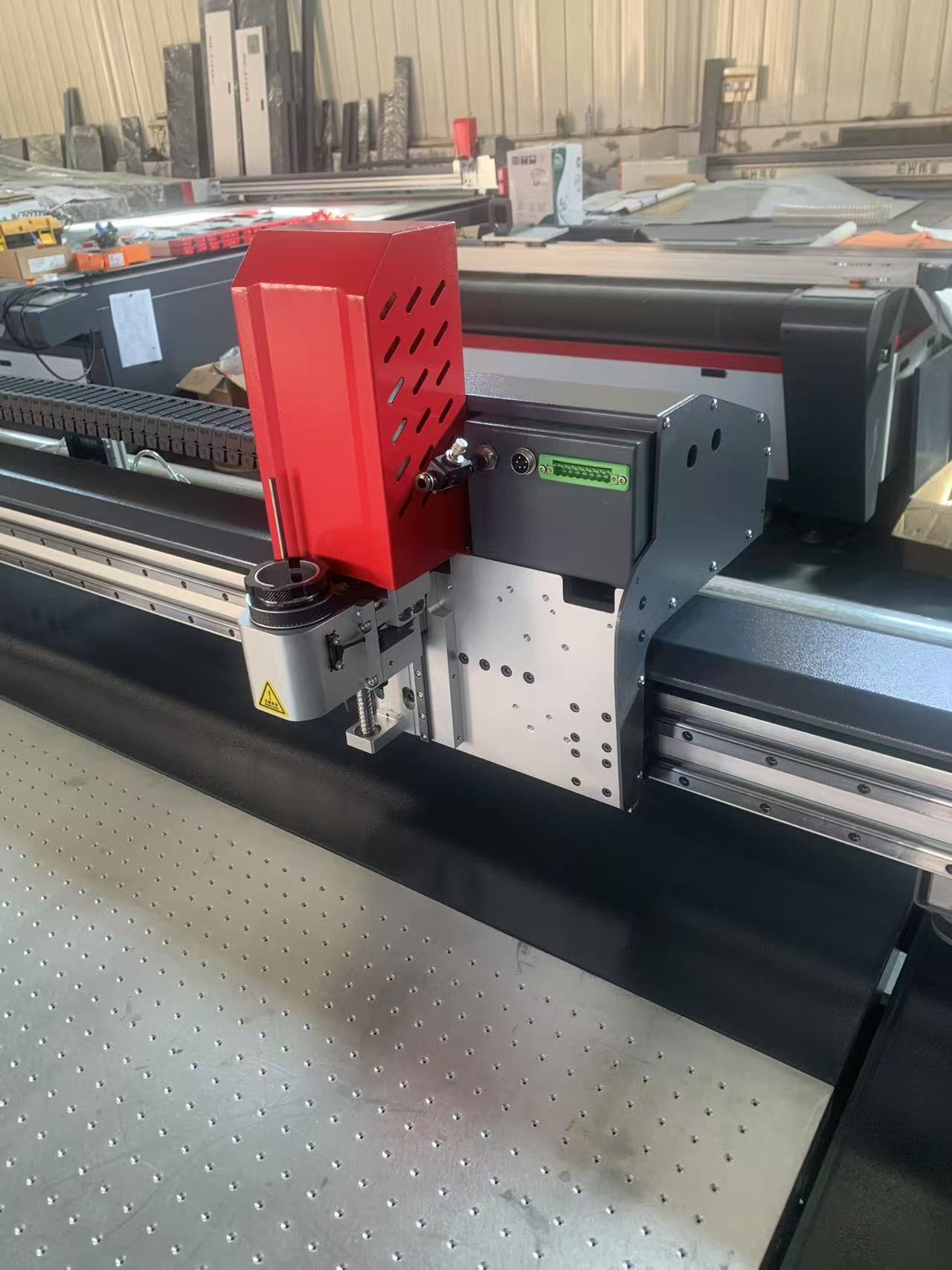

FLAT BED DIGITAL CUTTER
Model: Master 1610/2516-R
Main Features:
1) Flat Bed Cutter is automated digital cutter that offers powerful, expandable cutting solutions. By
switching variable tools will handle many materials : Corrugated board , Grey board , KT board,
Foam Package, Printed cardboard, Vinyl,Wool, leather, Carpet, Rug, Car seat ,Car mat, Car film, etc.
Applications are : Sign & Graphics, Tetiles, Packaging, Leather , fashion, Proof cutting ,,,etc.
2) Convenient operation Software is friendly. Touch screen, one click change parameters.
3) Vacuum fixation and CCD Camera system tracking printed marks ensures the cutting precision .
Specifications
|
Model |
1610 / 2516-R |
|
Working Area Max. |
1,600x1,000mm 62.99”x 39.37” / 2,500x1,600mm 98.4” x 62.99” |
|
Loading Area Max. |
1,650x1,050mm 64.96” x 41.3” / 2,550x1,650mm 64.96” x 100.39” |
|
Cutting Tools |
One holder, One Oscillating Tool |
| Table style |
Flat table / Auto feeding table, cutting lenght is more |
|
Cutting Speed |
1-1,500mm/s 59”/s Depending on applications |
|
Tool moving Speed |
Max. 1,600mm/s 62”/S |
|
Cutting Thickness |
Up to 80mm 3.1" Depending on applications |
|
Material fixation |
Vacuum table |
|
Repeat Accuracy |
+/- 0.1mm |
|
Support software |
Corel draw, AI, Auto CAD,,,etc. |
|
File Transfer Distance |
Max. 20meter 65.6ft |
|
Buffer Memory |
2GB, Fast transmission |
|
Power |
220V +/- 10% / 380V+/-10% 12Kw |
|
Transfer Port |
Network interface, USB |
|
Support Format File |
PLT/DXF/CDR/MPG |
|
Application Materials |
Corrugated stocks, Paper board, ABS/KT/PVC/PP stocks, Stickers, Foam package, Vinyl, Carpet, Car film, Car mat, , etc. |
|
Control System |
Four axis linkage |
|
Work environment |
T -5C- 40C RH 20%-70% |
| Weight |
Net: 700kg / 900kg Crate Gross 1,100 kg / 1,300 kg |
|
Machine dimension |
Machine 2,600x 1,700x1,350mm / 3,500x2,000x1,350 mm Crate 2,750x1,930x1,600 mm / 3,750x2,280x1,600 mm |
We can do Customization for you !
Options:
1. Tools:
Oscillating Tool ( Soft to medium density materials ,Corrugated package, Grey/KT board,Plastics, etc.)
Kiss cutting tool ( Vinyl, Sticker half cutting )
Pneumatic Oscillating Tool / Foam Tool ( EVA foam ,cutting up to 800 mm thickness )
Creasing Tool ( Package board Creasing line )
V Cut Tool ( for Grooving the line on boxes with different angles )
Rotary Tool ( Carpet, Rug, Fiber, textiles, Rubber )
2. Extra Cutting Holder
Main Configurations:
1. Cutting Machine with Auto feeding Conveyor table ( Ony 2516-R model)
2. One cutting tool holder , One Oscillating tool
3. CCD camera system for tracking printed mark
4. X,Y,R,UD Servo motors
5. Guide rail
6. Drag chain
7. Vacuum pump 5.5kw or 7.5kw
8. Security system by infrared sensor
19. Software
